ESP Mechanical and Spares

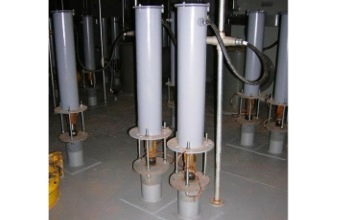

Collection and discharge electrodes accumulate dust over time with continued operation. Rapping systems remove this dust by mechanical impulses or vibrations. This keeps the ESP running smoothly at the optimum capacity. We provide time-controlled rappers for dust removal from electrodes as well as gas distribution and hopper walls.

Our solutions are adjustable as per the operational conditions of the industry. We provide electromagnetic rappers as well as tumbling hammers.

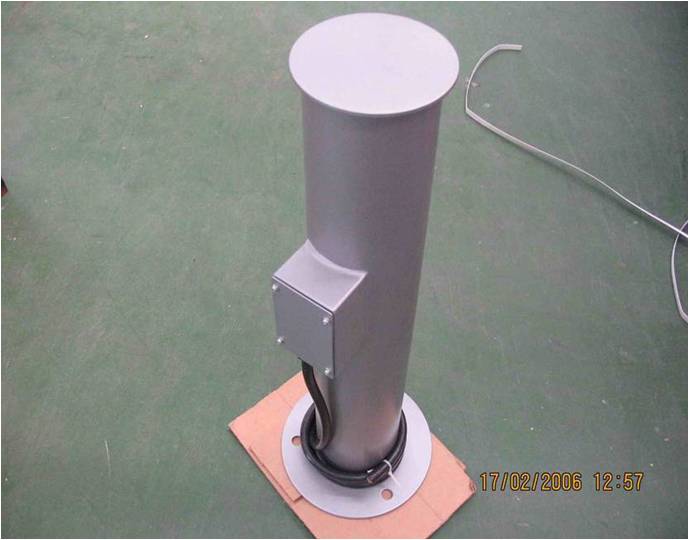

Electromagnetic Rapper

This type of rapper is an electromagnetic device and has only one moving part, the plunger. The vertical configuration of our rappers, supported by the precipitator roof, minimizes rebound-related failures and maximizes acceleration response to the electrode systems.

Parts of Electromagnetic Rapper

Electro Magnetic Top Rapping
– Rapper Coils ( 110V/220V ) Complete assembly
– Plunger
– Boot Seals
– Rain hood etc
– Adjusting Stud
– Grounding Jumper
– Rapper Rod

Tumbling Hammer

A tumbling hammer type rapper is ideally used for spiral discharge electrodes. These types of rappers are highly efficient in a moving gas stream where they are connected to a rotating shaft. They function by causing a vibratory shock to dislodge dust particles as they collide with the beam. We help you choose the right tumbling hammer based on the weight of the hammer and mounting arm as well as the length.

Major system components for tumbling hammer
– Hammer For C.E & D.E Rapping
– Bearing For C.E & D.E Rapping

Tumbling Hammer Equipment
– Rapper Shaft
– C.I Bearing
– Thrust Bearing
– Drive Bearing for CERM
– Hammer
– Inner Arm & Outer Arm
– Geared Motor along with Gearbox
