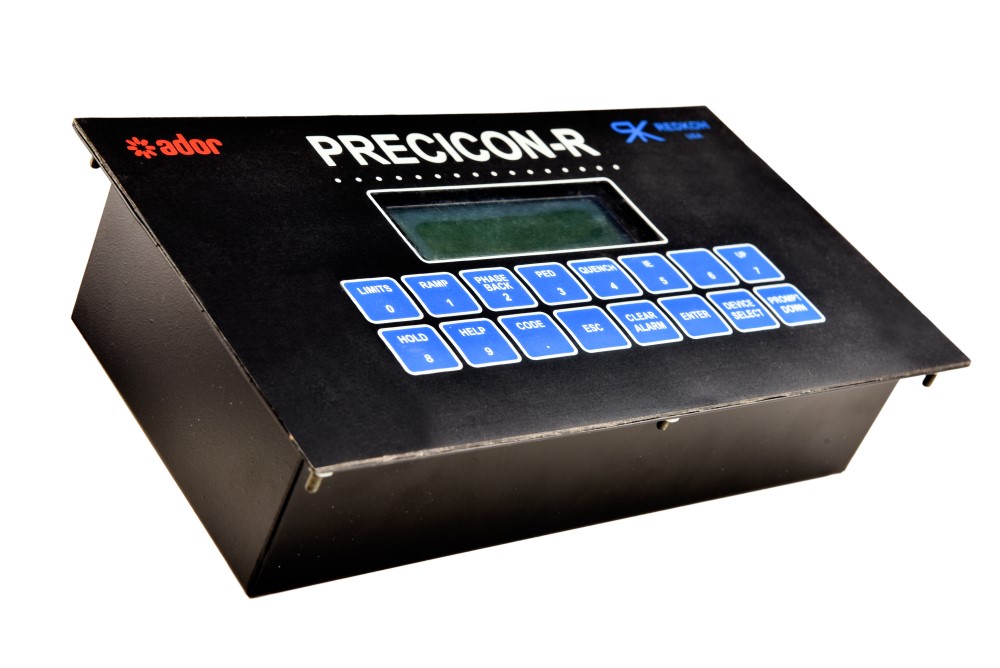

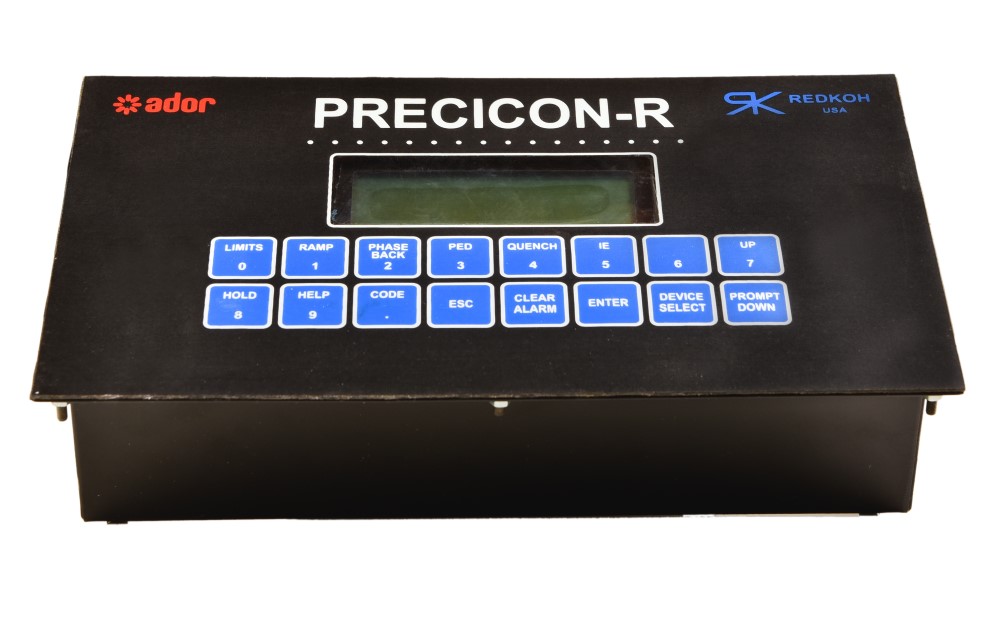

Precicon-R
Precicon-R is another sophisticated ESP controller that is powered by robust software to control back corona and result in cleaner collecting plates. We supply Precicon-R as a channel partner of Ador Powertron and also provide related spares and services for the module. With features like consolidated display of all relevant parameters, password protection and rapping programmer, it is one of the best ESP controllers in the market.
Precicon-R has advanced capabilities for high-speed reference data, analysis and adjustment to optimize the operation of ESP. It also allows single-point operation and can be easily incorporated into the IoT systems of industries. This means that Precicon can be operated remotely from the factory control system when connected to the network.
Product Highlights
- Cleaner collecting plates and reduced back corona with in-built Auto-optimization, Power Down and Control Rapping
- Integration of Voltage time curve by Active corona time determination.
- Real-time synchronization with an in-built rapping programmer that allows multiple control & operation options
- Software for In-built Opacity Optimization and automatic changeover to manual control with full spark, arc and over current facilities should the main processor fail
- High Noise Immunity in entire control
- Arc Detection & quenching: Controller can separately detect spark & Arc.
- Integrated Controller, which can control TR, rapper, heater etc. Thus separate rapper controller & heater controller is not required.
- Ability to reach back to the highest possible KV level (just below the spark level immediately after spark to reduce the idle field time to optimize ESP collection efficiency.
- Single Point Operation as it can be connected to IoT or over LAN
- Consolidated display of Online true value of kV, mA, spark accumulated, alarm, semi pulse current limit and all other engineering measurements
- Integrated Rapping programmer for better electrode cleaning without the need for a separate controller.
- Password protection to safeguard against unauthorized handling and memory storage for up to 1 year.
Specifications
| Temperature Range | 0°C to 60°C |
| Humidity Range | 0% to100% non-condensing |
| Communications | Optically Isolated |
| Communications Port | CAN BUS |
| Alarm Inputs | Optically isolated |
| Memory Type | Flash |
| Control Voltage Range | 85 to 132 V AC |
| SCR Gate Circuits | Optically and transformer isolated |
| Surge protected | Up to 5,000 volts |
| Component enclosure | Baked Enamel; Powder Coated Aluminum |
