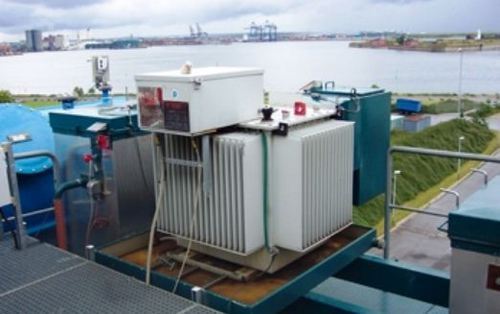

Ador Corona TR Sets
Ador Corona TR Sets are available in 1-phase and 3-phase versions. The performance of the two systems differs in terms of dust separation. We build tailor-made sets to meet any measurements for the electrostatic precipitator. Our expert teams also support installation, retrofitting and repair for these units.
We provide customized TR units to meet project-specific requirements, ranging from 180 to 690V and at variable frequencies. We also support needs of a wide voltage range, from 30 kVp to 200 kVp and output current ranging from 50 mA to 4000 mA.
Product Highlights
You can rely on us for high-quality equipment for critical projects that need reliable performance. Here are some of the key features and specifications of the products.
- Versatile Tank assembly that is Hermetically sealed and Corrugated Fin tank
- Easy Maintenance and Repair with integrated HV transformer, Current-limiting reactor, Rectifier & HF choke
- Excellent Surge Protection with HF choke
- Well protected design with CLR, Pressure release valve, Pressure Switch, Oil level gauge, Oil temperature dial thermometer
- Robust construction that is doubly wound, has crossover windings with electrostatic shield between HV & LV winding
- Safeguarded against transient travelling waves with HV rectifier stack made of glass-sealed passive avalanche diodes with controlled avalanche characteristics
Specifications
Input Voltage | 380 V to 690 V |
Variation | +/- 10% |
Frequency | 50 Hz / 60 Hz +/-5% |
Output Voltage | 30KV(P) to 200KV (P) On No Load at nominal rated I/P Voltage |
Output Current | 50mA to 4000mA Avg (mean) DC |
Design Form Factor | 1.2/ 1.3/ 1.4 MAX |
Design Ambient Temp | -30 *C to +55 *C |
Humidity | 100% |
Various Configuration of Possible Ambient | 40/45/50/55 `C with top oil temperature rise limited to 55/50/45/40`C |
Bushing Orientation | Horizontal/Vertical |
Method of Cooling: | |
– Control Panel | Natural Forced Air Cooled |
– T/R Set | Oil Natural Air Natural |
Coolant: Mineral Oil/ Silicon Oil | |
